WANDFLUH AVPW4X10 NG10 PILOT OPERATED AND NOT PRESSURE COMPENSATED

Pošalji upit za ovaj proizvod!

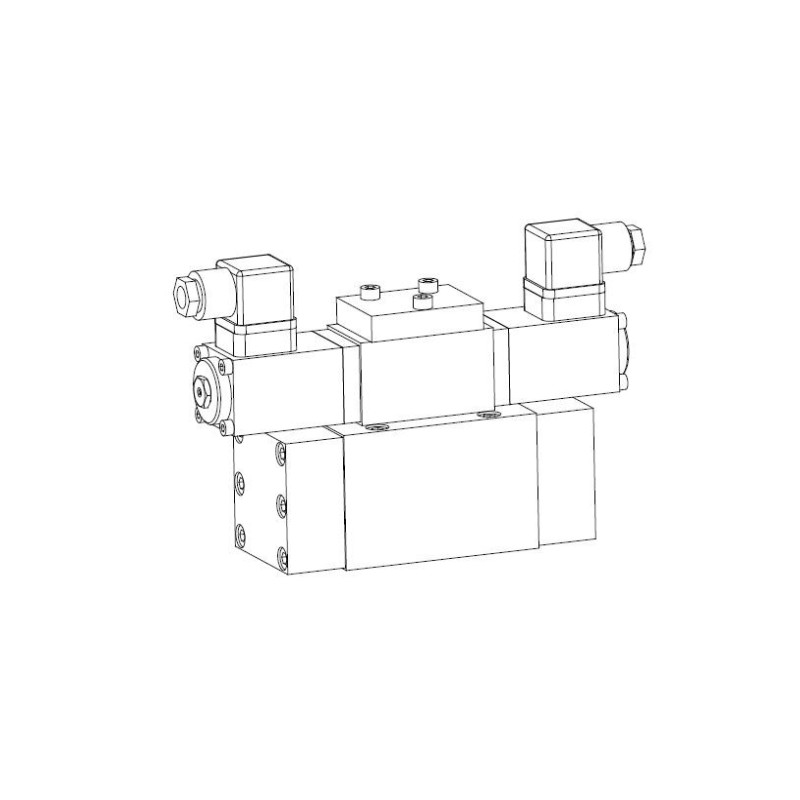

Pilot controlled spool valve, in five chamber design actuated by a Wandfluh proportional solenoid (VDE standard 0580). Wet solenoid in oil. Spool with precisely machined notches on control edges produce a progressive volume flow characteristic similar to proportional flow valves. The valve body, the covers and the solenoids are zinc coated.

Characteristics:

• pilot operated
• not pressure compensated
• Q_max: 220 l/min
• Q_N: 80 l/min
• p_max: 315 bar
• Nominal size: NG10 acc. to ISO 4401-05
• Designation: 4/2-, 4/3-way proportional-control valve
• Construction: Pilot operated spool valve
• Mounting: Flange, 4 fi xing holes for socket head cap screws M6 x 65

Pdf:

• TDS WANDFLUH AVPW4x10 NG10 pilot operated and not pressure compensated eng.pdf
