The

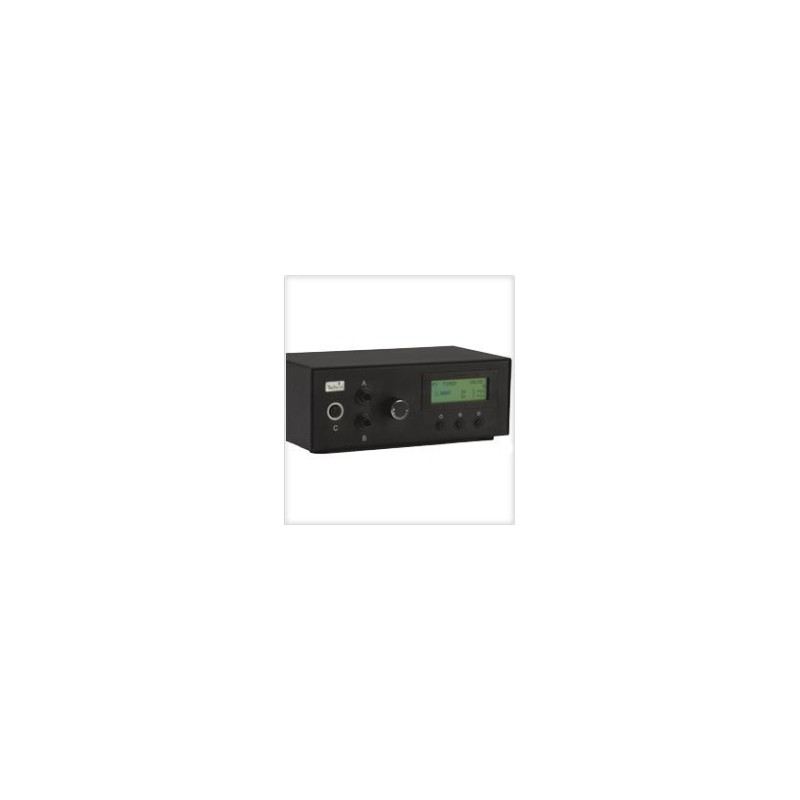

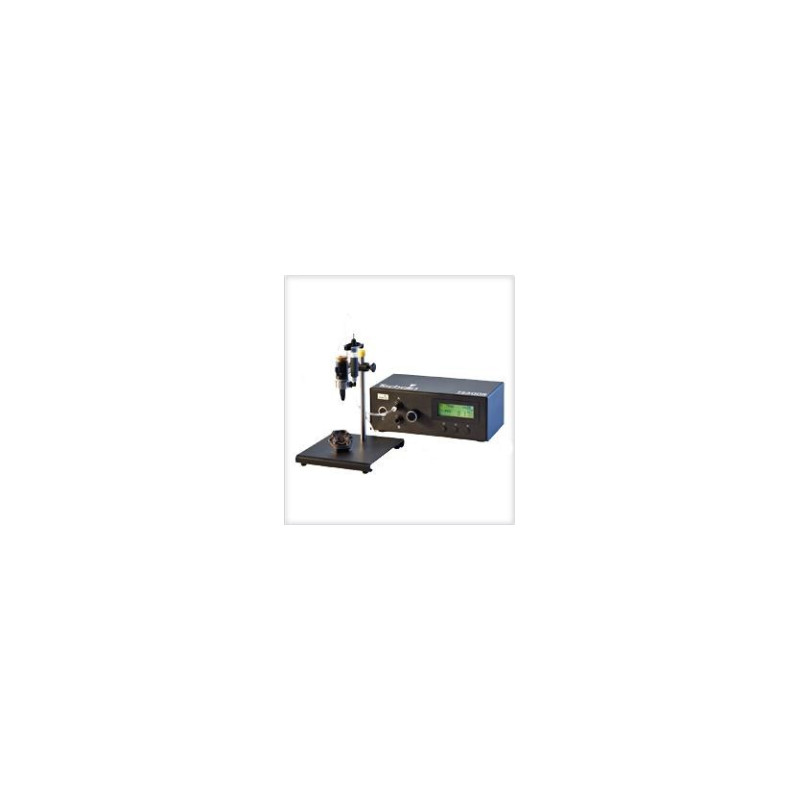

TS500R is the first of its type, in the industry, and is capable of controlling all Techcon systems valve series including: Pneumatic Valves, Spray Valves, Rotary Auger Valves and Rotary Auger Valves with encoder motor. With a universal power supply it is a fully 'plug and play' system and can be used immediately, anywhere in the world, with its accompanying tools and accessories.
The
TS500R Series is equipped with digital timer and pressure read-out on a large LCD screen. Pressure can be set in both psi and bar. The user friendly firmware provides an option of programming up to 10 varied, sequenced or individual shots. These systems have a user programmable manual (purge) and automatic dispense cycle settings (program and time) and the they feature a ''Teach Mode'' for determining the dispensing time required with dispensing output is unknown.
Integration into semi-automatic and automatic machinery is made easy with the interface connector, on the rear of this system. Through use of the interface port, the dispense cycle can be initiated, stopped and an end-of cycle signal can be fed back to the host machine in order to start the next dispense cycle. A low pressure warning feature is also included to help maintain uninterrupted dispensing.
Key Features and benefits:
- Controls all Pneumatic, Spray, and Rotary Auger Valves (inc. encoder motor Valves)
- Universal power supply with snap-on plug
- Clear 20 X 4 segments LCD display
- Classic “Rack Mount” Rectangular design
- Digital timing from 0.008-60.000 seconds
- Digitally displayed pressure in ''psi'' or ''bar''
- +/- 0.001% Repeat timing tolerances
- 10 Programmable Memories
- Adjustable low pressure warning feature
- Accessories included: Universal power adapter, Foot Switch, air hose with fittings and 5 micron air filter. High visibility, 20 x 4 LCD display panel with back lighting.
- Digitally displayed pressure in ''psi'' or ''bar''
