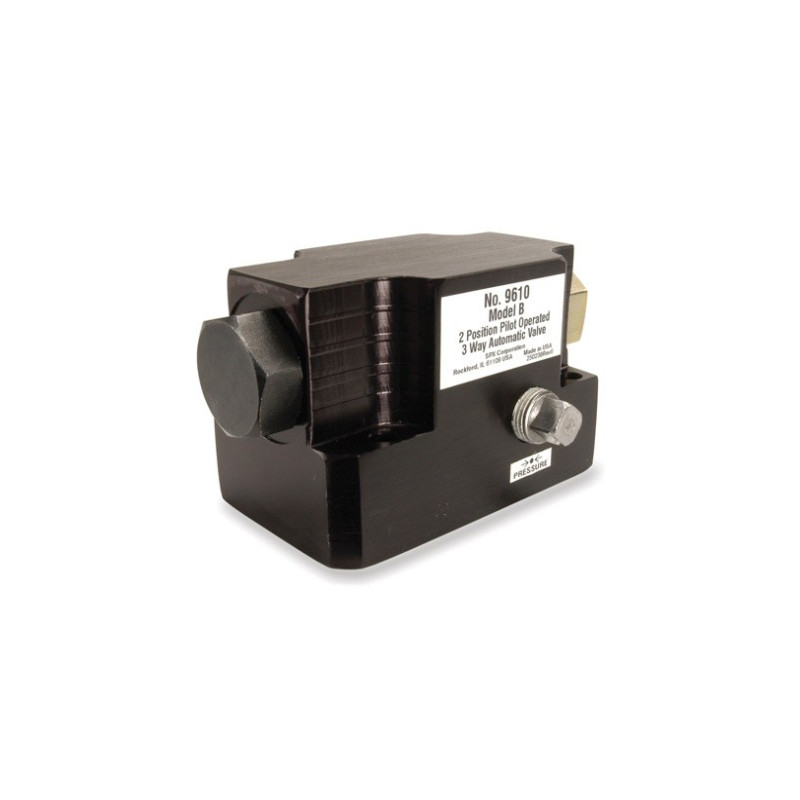

Application: Single-acting cylinders.
Actuation: Pilot oil.
Functions: When pump is started, pilot oil automatically closes valve and directs oil to cylinder; when pump is stopped, valve automatically opens and oil returns to reservoir.
Used on these pumps: Furnished with pilot lines and adapters for PA55, PA90, PE30, PE55, PE90, and PE120 series.
Note: A Pressure Switch and/or Gauge (Analog or Digital) may be attached to this valve.
Caution: To prevent sudden, uncontrolled descent of a load as it is being lowered, use a Load Lowering Valve (No. 9596) or Counter Balance Valve (No. 9720) in conjunction with the directional valve used in your application.
Important: When ordering any valve for a PE30 or PG30 series pump, ½” longer mounting screws are required.
For valves 9504, 9584, 9610 and 9610A, order four 12001 cap screws.
For valve 9582, order two 12001 and two 10856 cap screws.
