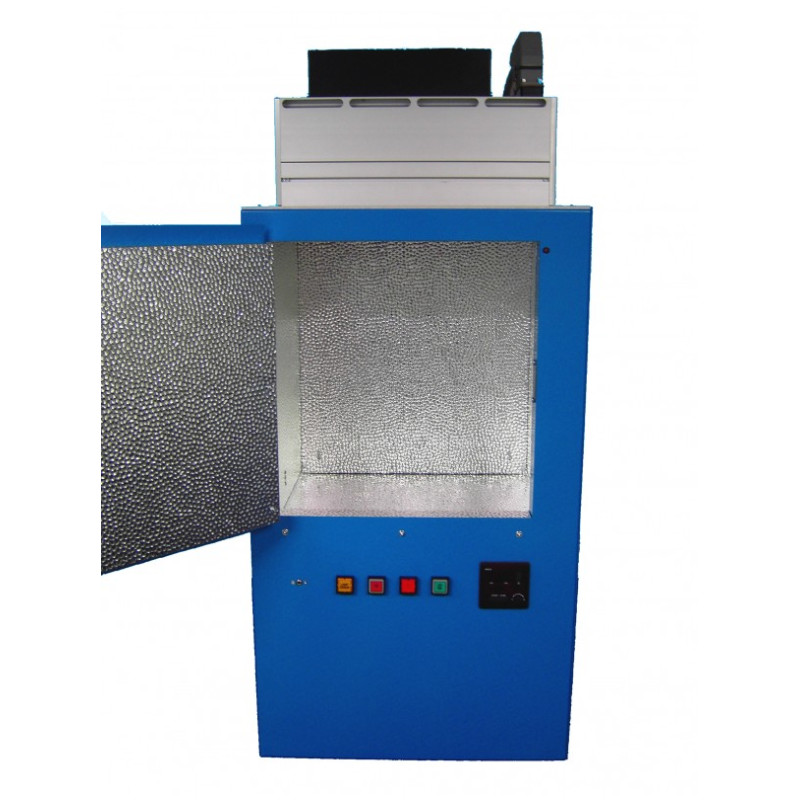

The UVACUBE 2000 is a UV curing
chamber for laboratory use and
manufacture by hand. Through
combining different UV units like
direct irradiation or ACM mirror for
temperature reduction, and lamps,
UVACUBE 2000 can be used for a large
variety of applications and offers
individual process solutions. The
power and timer pre-set are offering
high process reliability. In addition,
UVACUBE 2000 meets the highest
demands in operational safety and
ease of handling.
Highlights- user-friendly
- high operational safety
- ozone free Hönle-lamps
with standard
and special spectra
- wo step
power control
- optional ACM
temperature reduction
Applications- Curing of adhesives and plastics
- Curing of inks, varnishes and
coatings
- UV irradiation for chemical and
biological applications
UVACUBE 2000 has a useful working
capacity of around 45 x 40 x 30 cm
(HxWxD) permitting a wide range of
objects to be accommodated. Optimized
lamp reflectors and interior provide
uniform irradiation (approx. +/- 10% on
bottom of chamber).
There are, at a
two-step power control
(50% / 100%), up to 2000 W lamp power
for three different arc length available:
100mm, 150mm and 200mm and a arc
power output up to 200W/cm, 133W/cm
and 100W/cm
