DIATHERM THERMAL PADS

Pošalji upit za ovaj proizvod!

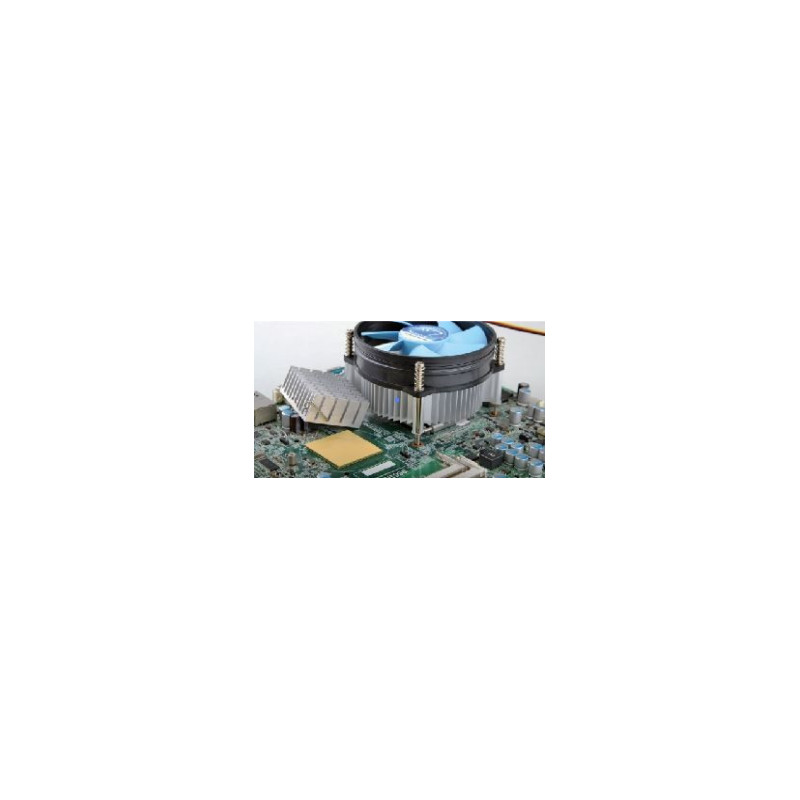

DiaTherm™ pads are constructed from an innovative and advanced silicone rubber with high thermal conductivity and exceptional dielectric strength. They are available in thicknesses from 0.5 to 12 mm, and this universally applicable material can be used in an unlimited number of thermal management configurations. The pads provide great conformability, easy application and can be die-cut to fit most applications. They are available as dry pads, or with an optional pressure sensitive adhesive tape for attachment. The pads are UL94 V-0, RoHS and REACH compliant.

Specifications and benefits:

• Thermal conductivity: 0.8 to 5.0 W/mK
• Cost effective solution at competitive price
• Custom die-cut parts: custom configurations available
• Soft and naturally sticky
• Electrically insulating
• No drying out, bleeding oil or hidden air (like thermal paste)
• Long life time
• UL 94-V0 approval up to 150 C°
• Optional 3M tape on one or both sides
• High dielectric breakdown of up to 6.5 kV/mm

Pdf:

• TDS DIATHERM Thermal Pads eng.pdf
