ARGO-HYTOS VJR2-10/M Pilot Operated Check Valves Sandwich Plates

EN AT DE CZ HU SI SK HR


Argo-Hytos

ARGO-HYTOS VJR2-10/M PILOT OPERATED CHECK VALVES SANDWICH PLATES

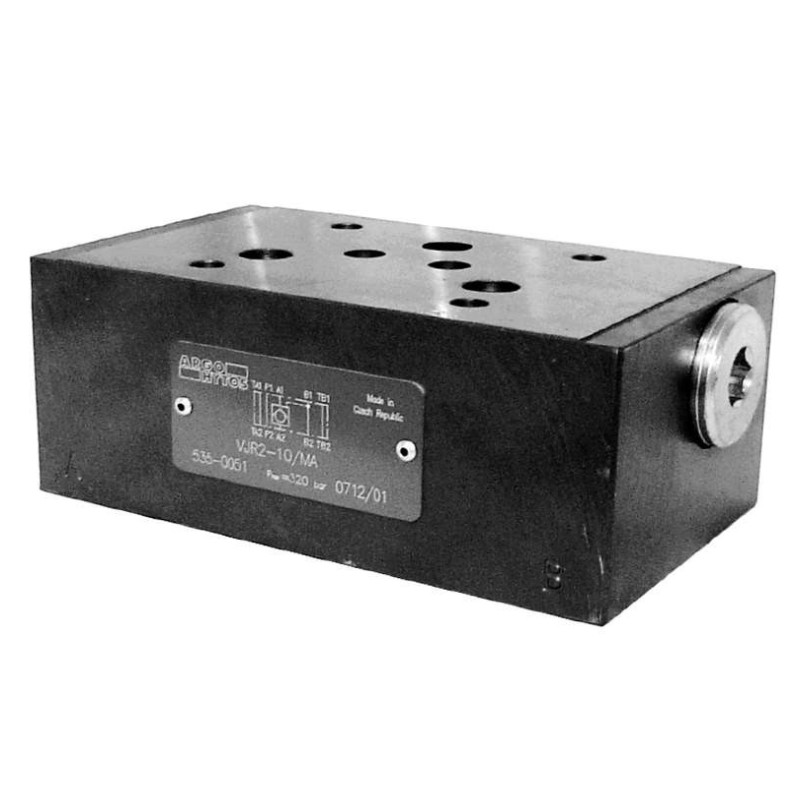

ARGO-HYTOS VJR2-10/M Pilot Operated Check Valves Sandwich Plates

ARGO-HYTOS VJR2-10/M Pilot Operated Check Valves Sandwich Plates
Pošalji upit za ovaj proizvod!
A pilot operated check valve closes tightly the hydraulic circuit between the valve and the actuator.

Description:

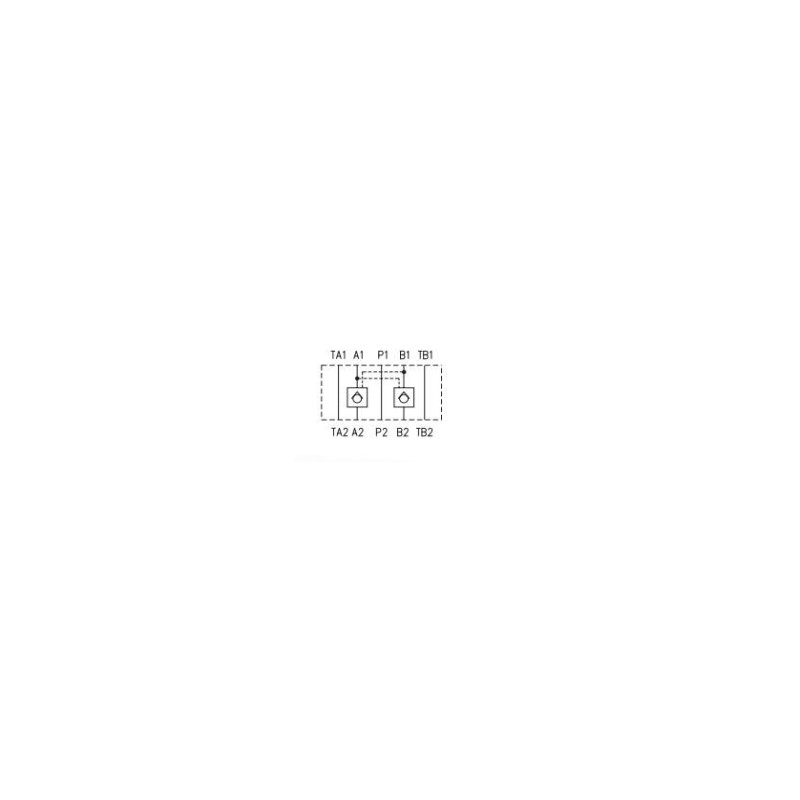

  • Pilot operated check valve sandwich plate for use in stacking assemblies
  • 3 models
  - double valve with check valves in lines A and B
  - single valve with check valve in line A
  - single valve with check valve in line B
  • Installation dimensions to ISO 4401-05-04-0-94 and DIN 24 340-A10

Features:
  • Size: 10
  • Pressures: up to 350 bar
  • Flow rate: 100 l / min


Pošalji upit za ovaj proizvod!
