ARGO-HYTOS SOP5A-Q3/l Overcentre Valve Part Balanced

EN AT DE CZ HU SI SK HR


Argo-Hytos

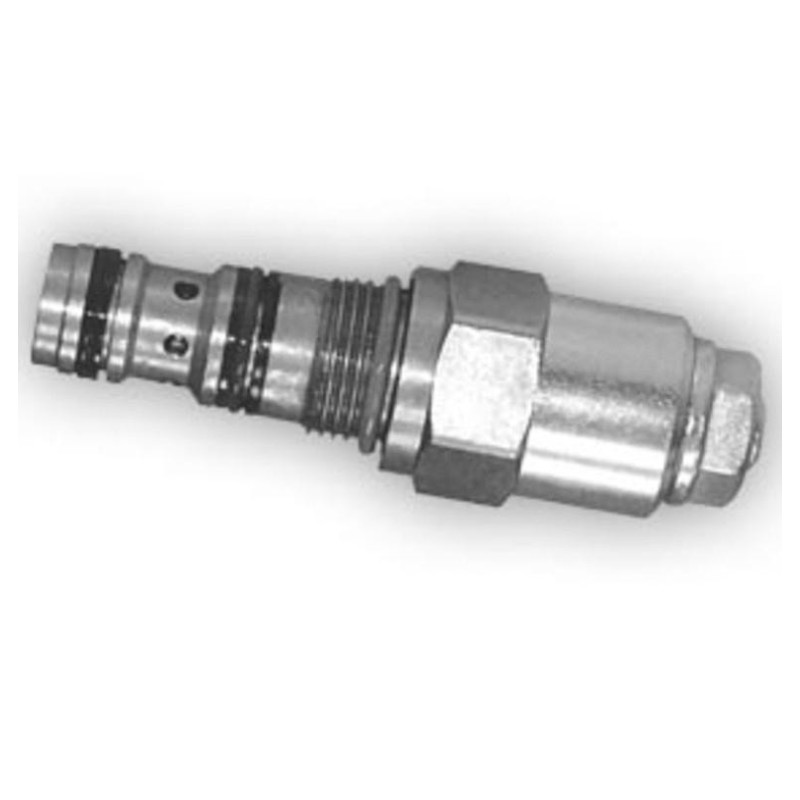

ARGO-HYTOS SOP5A-Q3/L OVERCENTRE VALVE PART BALANCED

ARGO-HYTOS SOP5A-Q3/l Overcentre Valve Part Balanced

ARGO-HYTOS SOP5A-Q3/l Overcentre Valve Part Balanced
Pošalji upit za ovaj proizvod!

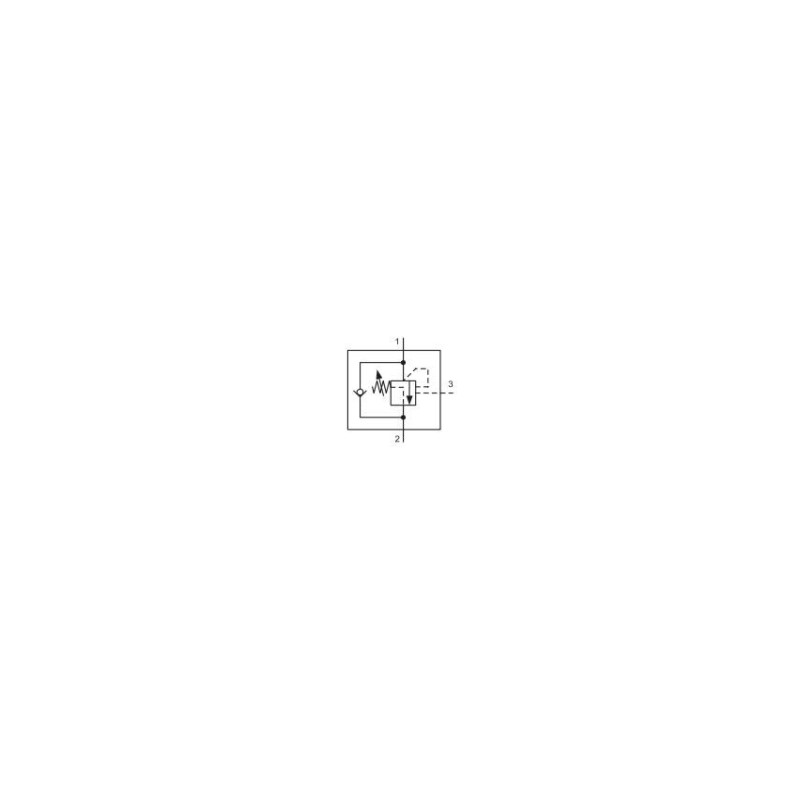

The valve consists of a seat by-pass, relief valve fitted with an auxiliary control with a differential piston and by-pass single-way valve serving for reverse direction of flow.

Description:
  • The valve prevents runaway in the event of a negative load
  • Load-holding without leakage
  • Pressure relief function protecting the actuator against overload and pressure peaks
  • When installed into the actuator the valve can be used as a hose burst valve
  • When used as pressure relief the check valve will act as an anti-cavitation valve
  • Relief setting is unaffected by back pressure
  • The valve should be mounted as close as possible to the actuator
  • Fits the same cavity as the Q3 check valve

Features:

  • Pressures: up to 350 bar
  • Flow rate: to 30 l / min
