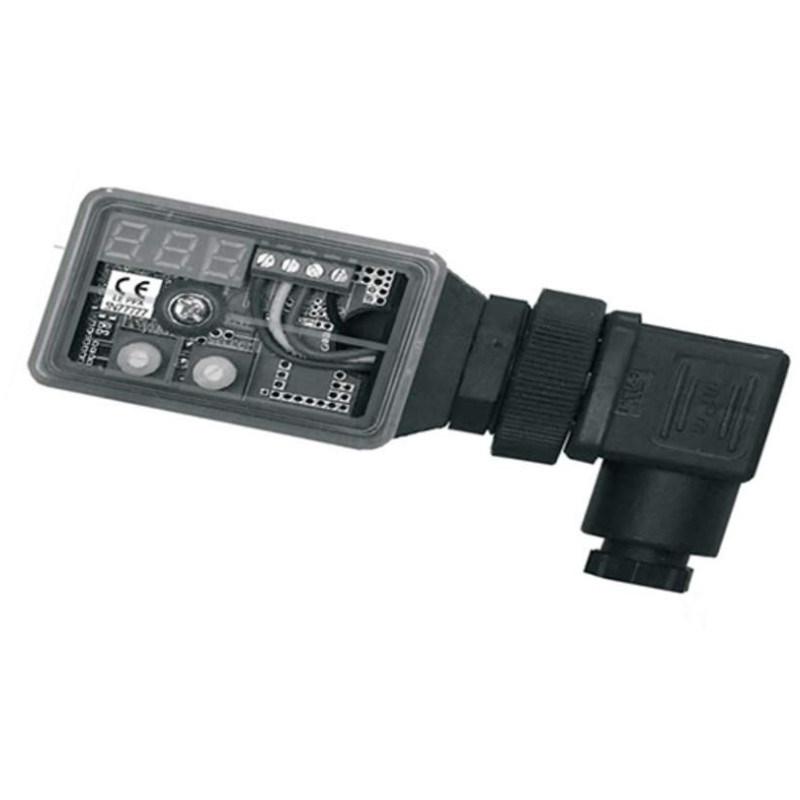

The control electronics is intended for controlling of proportional valves with one control solenoid. Its great advantage is a miniature design in form of a socket for astandardized DIN connector bas.
Description:- Microcontroller design
- Independent adjustments (Incl. ramp up and ramp down)
- 3 digit extra bright seven segment LED display
- Large, easy-to-use adjustments and readout
- Display and adjust actual values (current & voltage)
- Wide range of supply voltage
- User selectable input type through menu setup (ex: 0 to 5V, 0 to 10 V, 4 to 20 mA)
- Wide ramp time range (0 to 99,5 sec)
- Simple control with analog input, locally supplied reference voltage
- Energy efficient PWM circuit, no heat sink required
- Electronic limiting circuit/ short circuit proof
- Reverse polarity, command input protection
- Load can be connected and disconnected live
